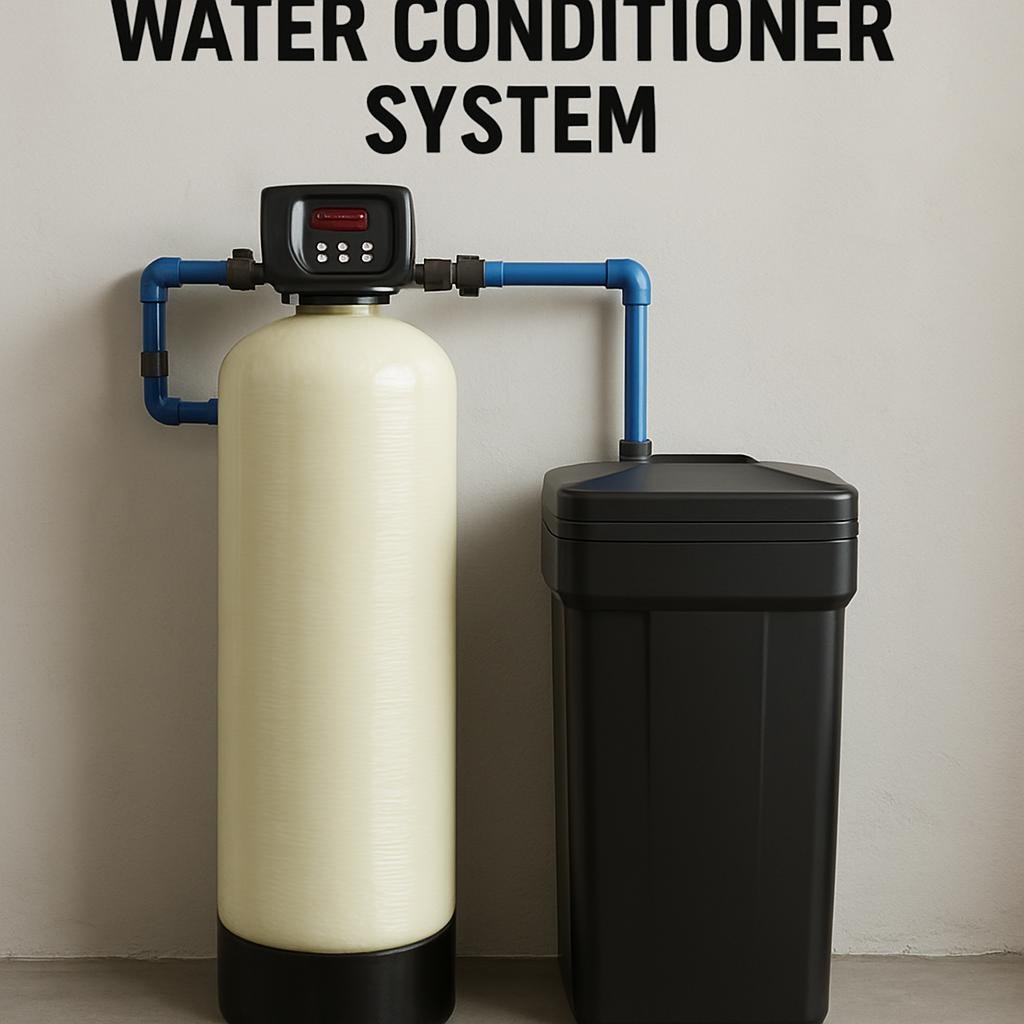

Ion exchange resins are a cornerstone of water treatment and various industrial processes, playing a critical role in purification, separation, and demineralization. However, their capacity to remove unwanted ions is finite. Once saturated, these resins lose their effectiveness and require regeneration to restore their functionality. This guide delves into the intricacies of ion exchange resin regeneration, providing a comprehensive understanding of the procedures, optimization strategies, and best practices to ensure efficient and cost-effective operation.

What is Ion Exchange Resin Regeneration?

Ion exchange resin regeneration is the process of reversing the ion exchange reaction, effectively stripping the accumulated contaminant ions from the resin beads and replacing them with the original, “regenerant” ions. This restores the resin’s capacity to continue removing target ions from the water or solution being treated. Without proper regeneration, the resin would become exhausted and useless.

Why is Regeneration Crucial?

• Restores Capacity: The primary purpose is to replenish the resin’s active sites, allowing it to continue removing specific ions.
• Cost-Effectiveness: Regenerating resins is significantly more economical than frequently replacing them.
• Sustains Performance: Consistent regeneration ensures the ongoing efficiency and effectiveness of water treatment systems.
• Environmental Responsibility: Reusing resins through regeneration reduces waste and the environmental impact associated with manufacturing new resins.

Types of Ion Exchange Resins and Their Regeneration

Ion exchange resins are broadly categorized into two main types:

1. Cation Exchange Resins: These resins exchange positively charged ions (cations).
   • Strong Acid Cation (SAC) Resins: Widely used for water softening (removing calcium and magnesium) and demineralization.
     • Regenerant: Typically sodium chloride (NaCl) for softening, or strong acids like hydrochloric acid (HCl) or sulfuric acid (H2SO4) for demineralization.
   • Weak Acid Cation (WAC) Resins: Used for alkalinity removal and temporary hardness reduction.
     • Regenerant: Strong acids (HCl, H2SO4) are effective.
2. Anion Exchange Resins: These resins exchange negatively charged ions (anions).
   • Strong Base Anion (SBA) Resins: Used for demineralization (removing sulfates, chlorides, nitrates, silica, and CO2).
     • Regenerant: Strong bases like sodium hydroxide (NaOH).
   • Weak Base Anion (WBA) Resins: Used for acid absorption and removal of strong acids.
     • Regenerant: Weak bases like sodium carbonate (Na2CO3) or ammonia (NH3), or even strong bases (NaOH).

The General Steps of Ion Exchange Resin Regeneration

While specific procedures vary based on resin type and application, the general regeneration process typically involves the following stages:

1. Backwash:
   • Purpose: To clean the resin bed, remove suspended solids, and reclassify the resin beads. Backwashing lifts and expands the resin bed, dislodging trapped particulate matter and ensuring proper flow distribution during subsequent steps.
   • Procedure: Upflow of water through the resin bed at a controlled rate, causing the bed to expand by 50-100%. The dirty water is typically drained to waste.
   • Optimization: Proper backwash flow rates are crucial. Too low, and solids won’t be removed; too high, and resin can be lost. Temperature also affects viscosity, so flow rates may need adjustment.
2. Regenerant Introduction (Slow Rinse/Co-current or Counter-current Flow):
   • Purpose: To introduce the concentrated regenerant solution to the resin bed, initiating the ion exchange reversal.
   • Procedure:
     • Co-current Regeneration: Regenerant flows in the same direction as the service flow. This is simpler but generally less efficient, as the regenerated resin at the top can be re-contaminated by ions displaced from the bottom.
     • Counter-current Regeneration: Regenerant flows in the opposite direction to the service flow. This is more efficient as the freshest regenerant contacts the most exhausted resin, resulting in better treated water quality and lower regenerant consumption. It requires more complex valving and bed compaction during regeneration to prevent mixing.
   • Optimization:
     • Concentration: The correct regenerant concentration is vital. Too low, and regeneration is incomplete; too high, and it’s wasteful and can damage the resin.
     • Flow Rate: A slow, controlled flow rate ensures adequate contact time between the regenerant and the resin.
     • Contact Time: Sufficient contact time allows for thorough ion exchange.
     • Temperature: For some resins (e.g., SBA resins removing silica), elevated regenerant temperature (e.g., hot NaOH) significantly improves regeneration efficiency.
3. Regenerant Displacement (Fast Rinse/Slow Rinse):
   • Purpose: To displace the concentrated regenerant solution from the resin bed, preventing its carryover into the service stream.
   • Procedure: Water is introduced at a slow rate initially to push the bulk of the regenerant through the bed, followed by a faster rinse.
   • Optimization: Efficient displacement minimizes regenerant waste and reduces rinse water volume. Monitoring conductivity can indicate when regenerant has been sufficiently displaced.
4. Fast Rinse:
   • Purpose: To thoroughly rinse the resin bed of any remaining regenerant chemicals and displaced ions until the desired water quality (e.g., conductivity, pH) is achieved.
   • Procedure: Water flows through the bed at service flow rates until effluent quality targets are met.
   • Optimization: Rinse to quality, not to volume. Stopping the rinse prematurely can lead to off-spec water; rinsing too long wastes water.

Optimizing Ion Exchange Resin Regeneration Procedures for Efficiency

Optimizing your regeneration procedures can lead to significant savings in water, chemicals, and energy, while also extending the lifespan of your resins.

1. Regenerant Selection and Concentration:
   • Choose the Right Regenerant: Ensure the regenerant is appropriate for the specific resin type and the ions being removed.
   • Optimize Concentration: Follow manufacturer recommendations, but also consider piloting or empirical testing to find the lowest effective concentration. Higher concentrations don’t always equate to better regeneration and can be wasteful.
2. Regenerant Flow Rate and Contact Time:
   • Slow Flow for Best Results: A slower regenerant flow rate generally provides more contact time, leading to more complete regeneration, especially for difficult-to-remove ions.
   • Adhere to Manufacturer Specs: Do not exceed recommended flow rates.
3. Temperature Control:
   • Hot Regeneration: For certain applications, particularly silica removal from strong base anion resins, heating the caustic regenerant to 120-140°F (50-60°C) dramatically improves regeneration efficiency.
   • Consider Energy Costs: Balance the benefits of heated regeneration against the energy costs involved.
4. Counter-current vs. Co-current Regeneration:
   • Prioritize Counter-current: If system design allows, always opt for counter-current regeneration. It consistently yields better water quality, uses less regenerant, and generates less waste.
   • Limitations: May require more complex piping and controls.
5. Water Quality for Regeneration:
   • Use Softened Water for Cation Regeneration: If regenerating SAC resins with brine, using soft water for the brine solution prevents calcium scaling in the regenerant distribution system and on the resin itself.
   • Use Demineralized Water for Anion Regeneration: When regenerating anion resins, especially for high-purity applications, using demineralized water for regenerant dilution and rinsing is crucial to avoid re-contaminating the resin with new ions.
6. Backwash Optimization:
   • Proper Flow Rate and Duration: Ensure sufficient backwash to remove fines and reclassify the bed without losing resin. Adjust flow for water temperature variations.
   • Monitor Bed Expansion: Visually inspect or use sight glass to confirm proper bed expansion.
7. Rinse Optimization:
   • Rinse to Quality: Do not simply rinse for a set time or volume. Monitor effluent conductivity (for demineralizers) or hardness (for softeners) and stop the rinse once target quality is achieved. This prevents water waste.
   • Step-wise Rinsing: Consider a slow rinse followed by a fast rinse to efficiently displace regenerant and then flush remaining impurities.
8. Preventing Fouling and Scaling:
   • Pre-treatment: Implement adequate pre-treatment (e.g., filtration, chlorine removal, anti-scalants) to protect resins from fouling by suspended solids, organic matter, iron, or scaling agents. Fouled resins require more frequent and aggressive regeneration, reducing their lifespan.
   • Regular Cleaning: Periodically clean resins with specialized chemicals (e.g., acid washes for iron fouling, caustic washes for organic fouling) if pre-treatment is insufficient.
9. Monitoring and Data Analysis:
   • Track Key Metrics: Regularly record and analyze data such as:
     • Volume of water treated per cycle
     • Regenerant consumption (kg or lbs per regeneration)
     • Rinse water volume (gallons or liters per regeneration)
     • Effluent water quality before and after regeneration
     • Pressure drop across the resin bed
   • Identify Trends: Look for declining capacity, increased regenerant usage, or longer rinse times, which indicate potential issues with the regeneration process or resin degradation.
10. Automated Control Systems:
    • Precision and Consistency: Automated control systems (PLCs, advanced controllers) can precisely manage regeneration cycles, ensuring consistent flow rates, contact times, and chemical dosing, leading to optimal performance and reduced human error.

Common Problems and Troubleshooting During Regeneration

• High Effluent Leakage (Poor Treated Water Quality):
  • Cause: Insufficient regenerant dosage, incorrect regenerant concentration, improper flow rate/contact time, fouled resin, channeling in the bed, exhausted resin (end of life), or incorrect regeneration sequence.
  • Solution: Check regenerant strength and dosage, verify flow rates, clean resin, inspect distributors, and consider resin replacement.
• Excessive Regenerant Consumption:
  • Cause: Over-dosing regenerant, inefficient regeneration method (co-current when counter-current is possible), short contact time leading to incomplete regeneration and higher dosage to compensate, or high raw water TDS.
  • Solution: Optimize dosage, switch to counter-current if feasible, check flow rates, and analyze raw water.
• Excessive Rinse Water Consumption:
  • Cause: Inefficient displacement of regenerant, poor distribution, or rinsing to time instead of quality.
  • Solution: Optimize displacement flow, check distributors, and rinse to effluent quality targets.
• High Pressure Drop Across Resin Bed:
  • Cause: Fouling (suspended solids, iron, organic matter), resin fines accumulation, or resin bead breakage.
  • Solution: Improve pre-treatment, backwash more effectively, consider chemical cleaning, or replace degraded resin.
• Resin Loss During Backwash:
  • Cause: Excessive backwash flow rate.
  • Solution: Reduce backwash flow and ensure proper bed expansion.

Safety Considerations

Working with regeneration chemicals (acids, caustics) requires strict adherence to safety protocols:

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including chemical splash goggles, face shield, gloves, and protective clothing.
• Ventilation: Ensure adequate ventilation in regeneration areas.
• Emergency Showers and Eyewash Stations: Have readily accessible safety showers and eyewash stations.
• Material Safety Data Sheets (MSDS/SDS): Familiarize yourself with the SDS for all chemicals used.
• Neutralization Procedures: Understand and have the necessary materials for spill containment and neutralization.
• Proper Handling and Storage: Store chemicals according to manufacturer guidelines.

Conclusion

Effective ion exchange resin regeneration is an art and a science. By understanding the underlying principles, meticulously following procedures, and continually optimizing each step, you can significantly enhance the efficiency, longevity, and cost-effectiveness of your water treatment systems. Regular monitoring, proactive troubleshooting, and a commitment to safety are paramount to achieving consistent, high-quality results from your ion exchange processes.
